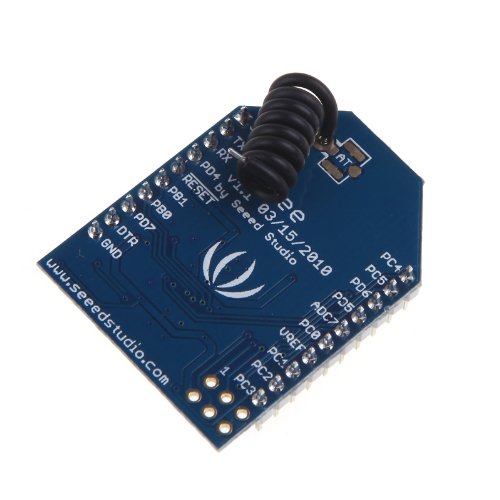

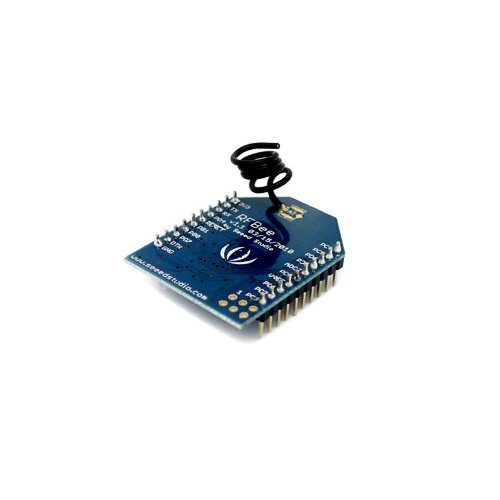

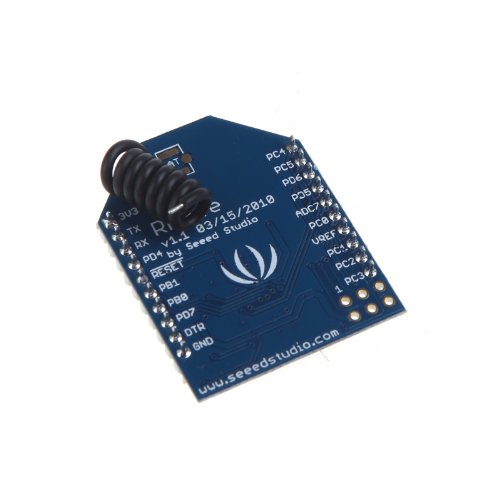

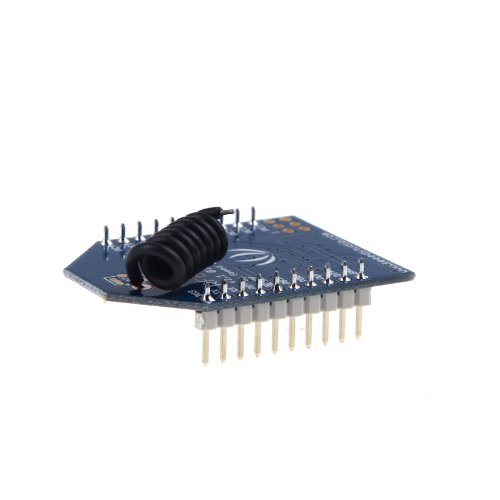

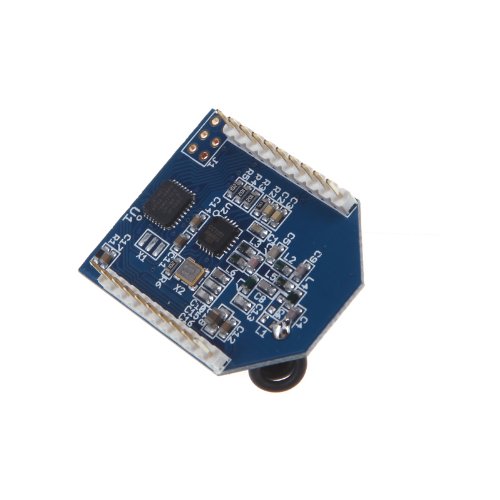

Note: Only the Rx, Tx, VCC, GND pins are identical to the Xbee. RFbee will not communicate with Xbee, so RFbee need to be used on both ends of the wireless connection. Application Ideas: Powerful RF control Easy to implement of WSN (Wireless Sensor Network) Specifications: Microprocessor: Atmega168 PCB size: 24.38mmx32.94mmx0.8mm Indicators: No Power supply: 3.3V IO counts: 9 ADC input: 7(6 multiplexing with IO) Program interface: USB Connectivity: Socket compatible with XBee Communication Protocol: Uart(TTL) Operating Frequency Band: ISM 868MHz & 915MHz Outline Dimension: 24.38mmx32.94mmx15mm Electrical Characteristics: Input voltage: 3.3VDC (3.0-3.6VDC) Transmit Current: 34.5mA Receive Current: 18.1mA Idle Current: 5.2mA Power-down Current: <0.3mA Operating Temperature: -50 ~ 125℃
